Intelligent Welding Robot Series Embodied Intelligent Robot

ROKAE has deep expertise in welding applications. Relying on its next-generation fully force-controlled flexible collaborative welding robots, ROKAE provide agile welding solutions suitable for small-batch, multi-variety production, widely applied in shipbuilding, steel structures, construction machinery, cranes, power, and electrical engineering.

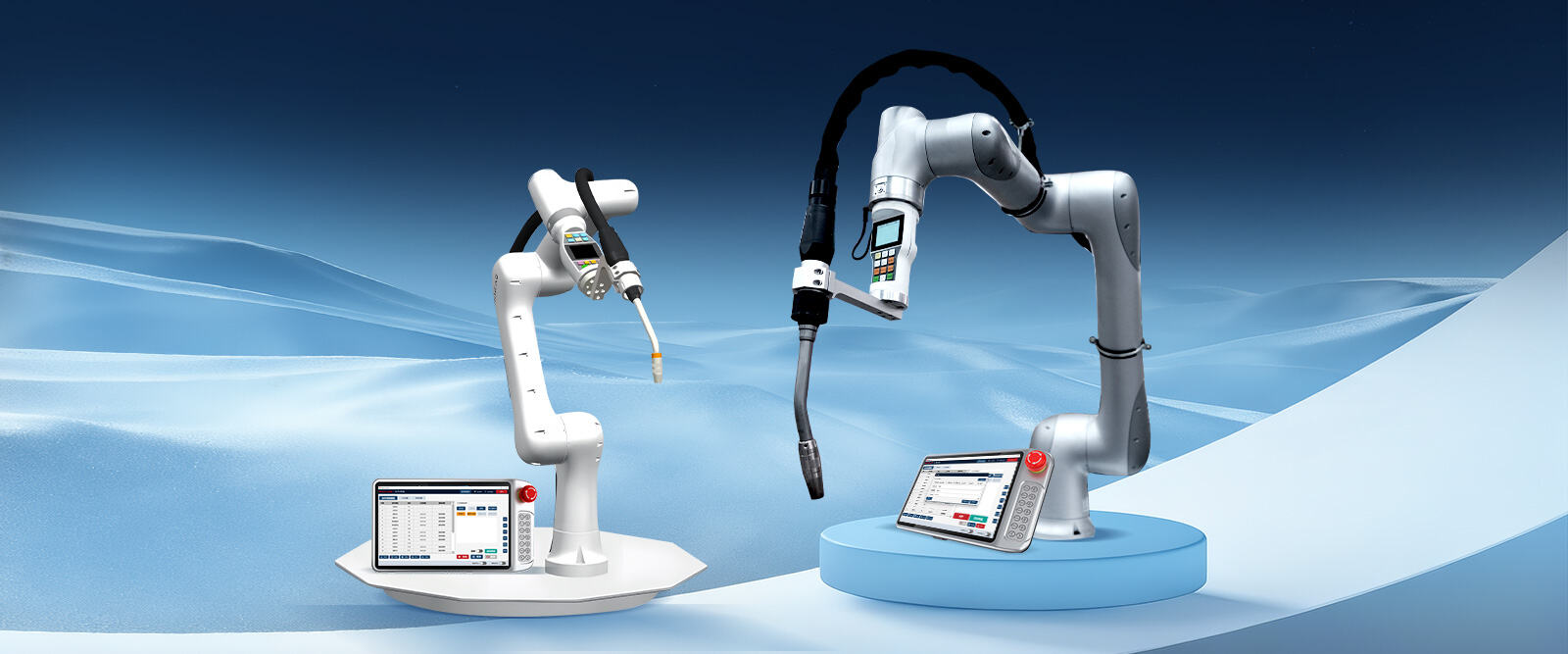

Intelligent Welding Robot Series

Request A Demo

Features

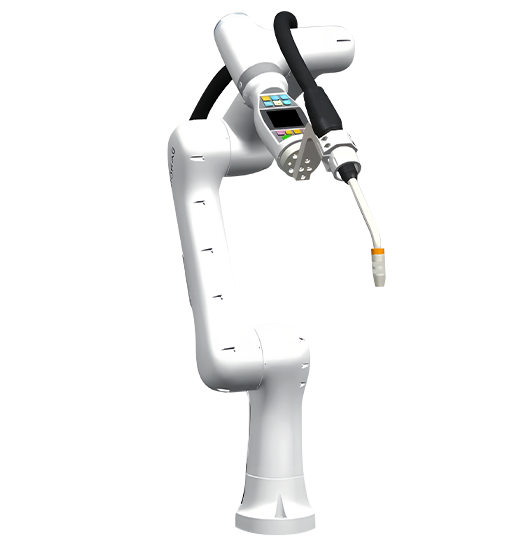

Fully Force-Controlled Flexible Welding Robot

Data Overview

Intelligent Welding Robot Specifications

	SR3-3/0.7C	SR5-5/0.9C	CR7-7/0.98C	CR12-12/1.4C
Payload	3 kg	5 kg	7 kg	12 kg
Reach	705 mm	919 mm	988 mm	1434 mm
Repeatablity	±0.03 mm	±0.03 mm	±0.02 mm	±0.03 mm
Maximum Speed at Tool End	≤1.5 m/s	≤2.0 m/s	≤3.2 m/s	≤3.0 m/s
Weight	About 13.8 kg	About 16.5 kg	About 25 kg	About 41 kg
IP Rating	IP54	IP54	IP67	IP67
Force measurement resolution	0.1 N,0.02 Nm
Relative Accuracy of Force Control	0.5 N,0.1 Nm

	Controller Cabinet
Name	xMate Control Cab（MCC Controller Cabinet）
Protection Level	IP54
Operating Temperature Range	0℃~50℃
General Digital I/O	16DI/DO
imensions	450x250x350mm
